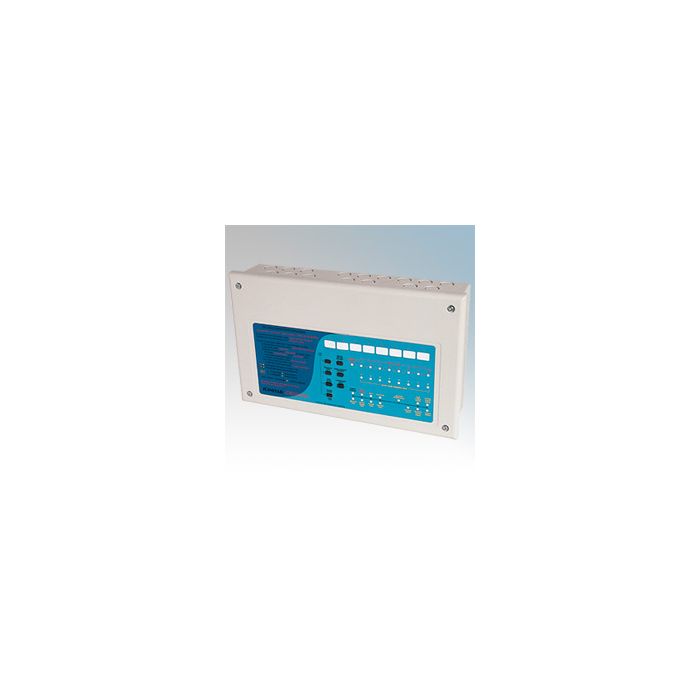

8-zone fire alarm panel

Back

LPCB certified to EN 54 Parts 2/6
Intuitive user-friendly interface
Four conventional sounder circuits
Integral 1.5A EN 54-4/A4
Two on-board relays (Fire and Fault)
Two open-collector outputs (Remote and Reset)
Class change and alert inputs
Installer-friendly design accommodates easy first fix and straightforward maintenance
Attractive flush or surface mountable plastic lid and enclosure - no bezel required
Low 25mA quiescent current
Multiple indicators
Ancillary system expansion connections provided for up to eight two-wire repeaters (one network driver card required per system)
Space for two x 12V 3.0Ah VRLA batteries
Batteries are not included - all panels require 2 x AC5452 to operate
Full range of fire alarm equipment

More Information
Flipbook url	Interactive Trade Catalogue
Colour	Grey
Current rating	1.5 A
Depth	96 mm
Ip rating	IP30
Length	380 mm
Material	Plastic
Mounting type	Flush/Surface
Product weight	1.75 kg
Width	235 mm
