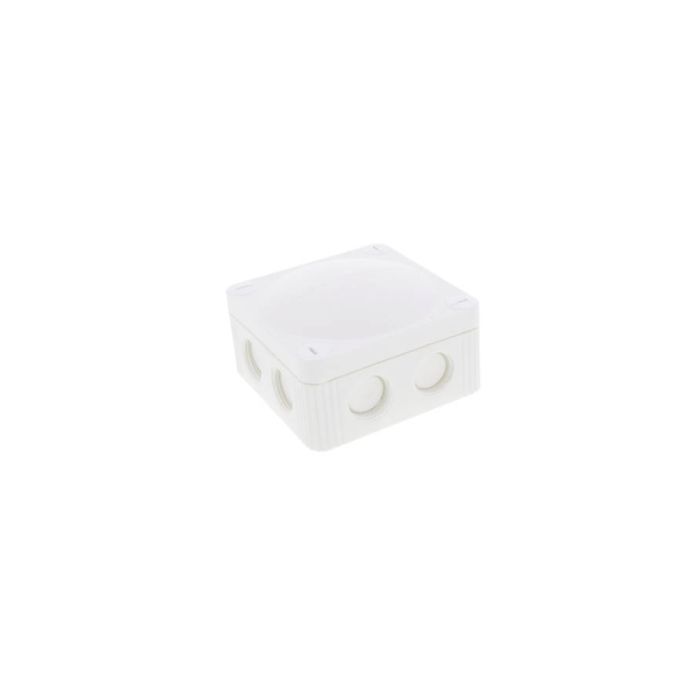

Junction box IP66/67 5P 32A 85x85x51mm white
Junction box IP66/67 5P 32A 85x85x51mm white
AC7013
- Material Polypropylene
- Material sealing gasket TPE
- Temp. range min -30 °C
- Temp. range max 100 °C
- Temperatures during install. -5 °C - 60 °C
- Protection class IP66 / IP67
- Glow wire test 750 °C
- Voltage 400 V
- Rated current / A (Terminal) 32 A
- Rated cross section 4 mm²
- Terminals/poles 5-pole, 4,0 mm²
- Fixing 4 internal openings
- Ø cable diameter min 3 mm
- Ø cable diameter max 12 mm
- External dimensions LxWxH 85 x 85 x 51mm
- Product Color RAL 9001
More Information
| Flipbook url |
Interactive Trade Catalogue |
| Colour |
White |
| Current rating |
32A |
| Depth |
51 mm |
| Ip rating |
IP67 |
| Length |
85 mm |
| Material |
Polypropylene |
| Number of poles |
5P |
| Width |
85 mm |
