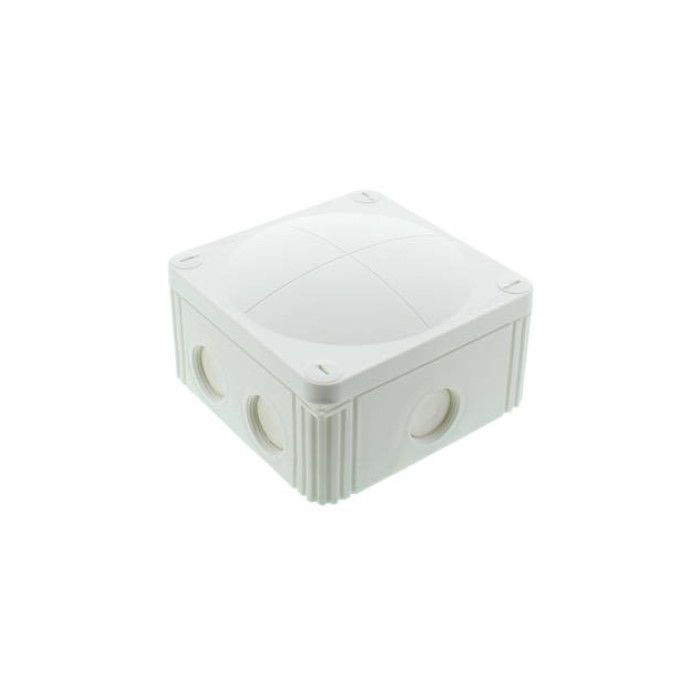

AC7014
- Material Polypropylene
- Material sealing gasket TPE
- Temp. range min -30 °C
- Temp. range max 100 °C
- Temperatures during install. -5 °C - 60 °C
- Protection class IP66 / IP67
- Glow wire test 750 °C
- Voltage 690 V
- Rated current / A (Terminal) 41 A
- Rated cross section 6 mm²
- Terminals/poles 5-pole, 6,0 mm²
- Fixing 4 internal openings
- Ø cable diameter min 5,2 mm
- Ø cable diameter max 17 mm
- External dimensions LxWxH 110 x 110 x 66mm
- Product Color RAL 9001
| Colour | Cream RAL 9001 |
|---|---|
| Depth | 66 mm |
| Ip rating | IP66 |
| Length | 110 mm |
| Material | Polypropylene PP |
| Width | 110 mm |
| Flipbook URL | Interactive Trade Catalogue |
| Current rating | 41A |
| Mounting type | Surface |
