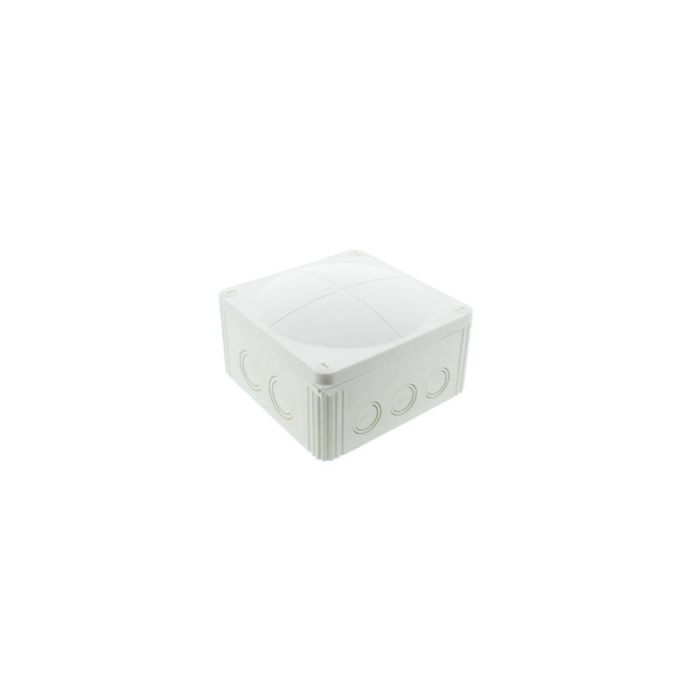

AC7015
- Material Polypropylene
- Material sealing gasket TPE
- Temp. range min -30 °C
- Temp. range max 100 °C
- Temperatures during install. -5 °C - 60 °C
- Protection class IP66 / IP67
- Glow wire test 750 °C
- Voltage 690 V
- Rated current / A (Terminal) 57 A
- Rated cross section 10 mm²
- Terminals/poles 5-pole, 10,0 mm²
- Fixing 4 internal openings
- Ø cable diameter min 6 mm
- Ø cable diameter max 21 mm
- External dimensions LxWxH 140 x 140 x 82mm
- Product Color RAL 9001
| Colour | White |
|---|---|
| Flipbook URL | Interactive Trade Catalogue |
| Current rating | 57A |
