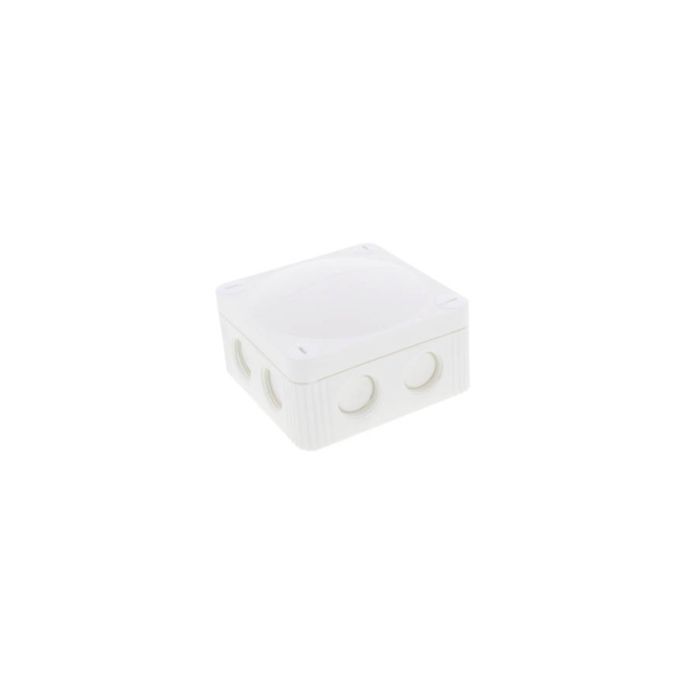

AC7011
- Material Polypropylene
- Material sealing gasket TPE
- Temp. range min -30 °C
- Temp. range max 100 °C
- Temperatures during install. -5 °C - 60 °C
- Protection class IP66 / IP67
- Glow wire test 750 °C
- Voltage 400 V
- Rated cross section 4 mm²
- Fixing 4 internal openings
- Ø cable diameter min 3 mm
- External dimensions LxWxH 85 x 85 x 51mm
- Product Color RAL 9001
| Colour | Cream RAL 9001 |
|---|---|
| Depth | 51 mm |
| Ip rating | IP66 |
| Length | 85 mm |
| Material | Polypropylene PP |
| Width | 85 mm |
| Flipbook URL | Interactive Trade Catalogue |
| Mounting type | Surface |
